格兰富潜污泵搅拌器SMG.48.73 .306.5.1B适用于污水处理

技术参数:

推力功率比:  0.323

轴向依托力:  1600 N

额定流量:  579 升/秒

平均速度:  1.38 米/秒

螺旋桨转速:  306 转数／分钟

Tip speed:  11.7 米/秒

齿轮齿数比:  4.833

推进器直径:  730 毫米

推进器片数量:  2

主轴封:  2 RADIAL LIP SEALS

Curve tolerance:  ISO9906:2012 3B

材料:

电机:  AISI EN-GJL-250

螺旋桨:  1.4301

轴心:  AISI 1.4301

油漆厚度:  450 micrometre

Secondary shaft seal:  CARBIDE/CARBIDE

安装:

Maximum installation depth:  20 米

适配圆柱形管，尺寸:  100/100 毫米

液体:

液体温度范围:  5 .. 40 °C

电气数据:

输入功率——P1:  5.3 千瓦

Power input Act:  4.96 千瓦

额定功率——P2:  4.8 千瓦

电源频率:  50 Hz

额定电压:  3 x 400-415 V

电压差:  +6/-10 %

Rated current:  12 安

启动电流:  109 安

Cos phi – 功率因数:  0.67

Cos phi – 3/4 负载时的功率因数:  0.57

Cos phi – 1/2 负载时的功率因数:  0.44

Rated driver speed:  1468 转数／分钟

电机满载效率:  89.8 %

电机3/4负荷效率:  88.5 %

电机1/2负荷效率:  85 %

电机极数:  4

起动方法:  Y/D

封装等级（IEC 34-5）:  IP68

Insulation class (IEC 85):  H

防爆:  N

Built-in motor protection:  PTO (THERMAL SWITCH)

Length of power cable:  15 米

Power plug:  No plug

控制器:

湿度传感器:  N

探测液体中杂质的电容传感器:  Y

其他:

Net weight:  164 千克

Custom tariff no.:  84798200.90

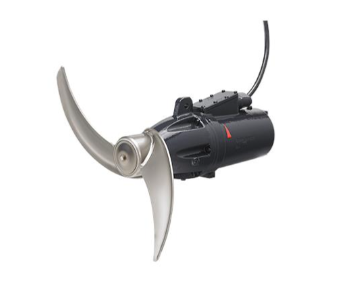

Grundfos SMG.48.73 .306.5.1B

The Grundfos range of horizontal submersible SMG mixers is designed for applications involving the mixing, i.e. the homogenisation and suspension, of low- to medium-viscosity liquids. The mixers are equipped with a gearbox and an energy-efficient propeller. The squirrel-cage induction motor is protected against overload by means of three bimetallic thermal switches (PTO) in the motor windings. The products are equipped with IE3 motor components . To prevent ingress of the surrounding liquid, the SMG mixers have two radial FKM rubber lip seals together with a ceramic wear ring and a mechanical shaft seal made of silicon carbide/silicon carbide or tungsten carbide/tungsten carbide, depending on size. The secondary seal between the gearbox and the motor is made of carbon/aluminium oxide. The oil-filled gearbox is monitored for the ingress of water by a leak sensor incorporated as standard in the gearbox. The sensor can trigger an alarm signal and/or switch off the motor by means of an external Grundfos relay type ALR-20/A. The gearbox incorporates tapered roller bearings absorbing the axial force from the propeller. Motors range from 0.9 to 18.5 kW. A wide range of accessories made of stainless steel AISI 304/316 ensures easy installation and long trouble-free operation.
